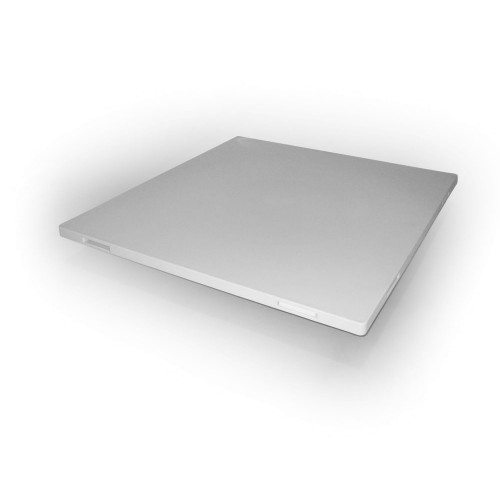

Resin Table Top 30 in. x 32 in. modular - 8DSN1W -

Our UNIVERSAL resin table tops were developed to replace old wood table tops with K-plate systems for the most demanding rental and catering applications... yet they can be used with most existing mono-leg systems on the market to replace any wood table top, in restaurant, cafes, bars. They can be used INDOOR/OUTDOOR

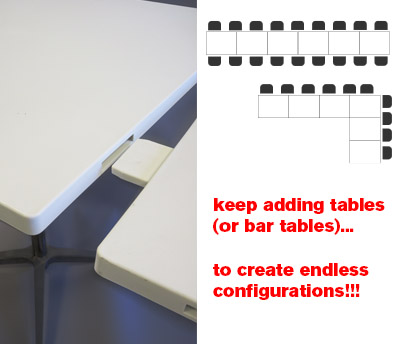

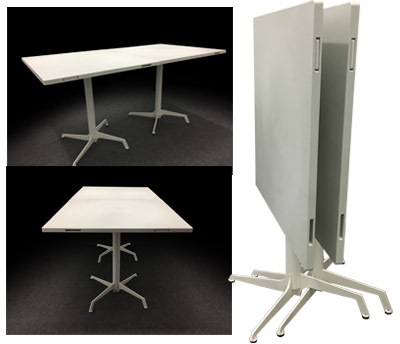

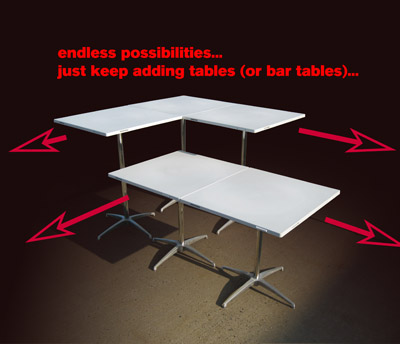

connectivity is amazing with our 30in.x32in. table tops... When regular mono-leg tables are joined together to accommodate large parties, the alignment is very often impossible, table tops have steps and/or slightly different inclinations resulting in visually unpleasant and quite uncomfortable junctions. With our slide in-slide out tongue and groove system, tables can be added in any direction and they remain seamlessly joined. Your customers will love it... You will love it!

MATERIAL

Our table tops are made of a strong, easy to maintain techno-polymer reinforced with fiber glass. They can be used indoor and outdoor. The technology used is an advanced co-injection system resulting in a multi-density structure with a foamed core and high density skin.

super strong and highly resistant to scratches the fiber glass filled techno-polymer has a natural scratch resistance predisposition paired with strength, impact resistance and rigidity unparalleled by other materials. Metallic inserts can be inserted into the top to increase performances in the coupling table top-leg system of your choice.

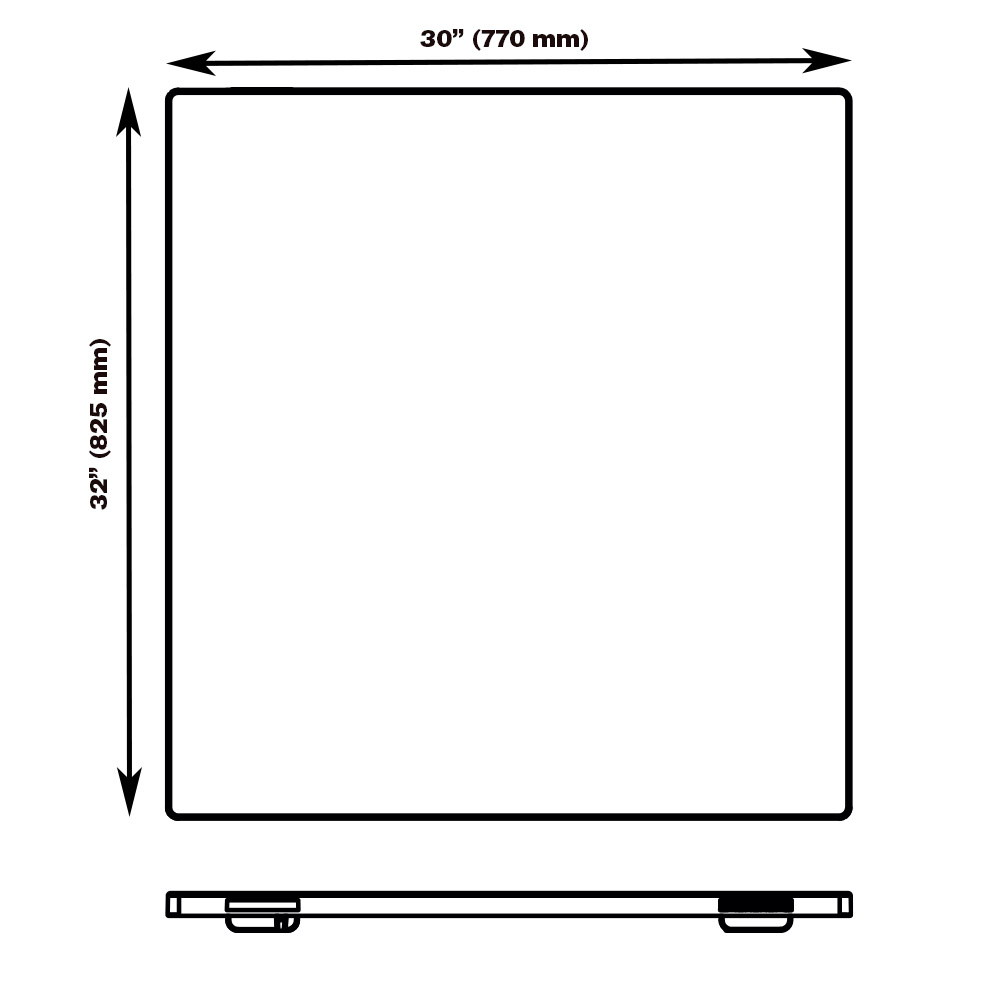

DIMENSIONS

30inx32in. nominal [800mm]

actual dimensions: 30 3/8 x 32 1/2 in. [770mmx825mm]
crown thickness 1 in. [25 mm]
@ sliders thick. 1 1/2 in. [38 mm]
net weight: 15 lb. [6.80 kg]

Table top anchorage instructions: K-Plates

In case you are recycling your old table top K-Plates, here's how to.

• Use a Ø3mm (1/8in.) drill bit with a collar set to make a pre-hole 10mm (3/8in.) deep for the 6 screws holding the k-plate.
• The position of the 6 holes for the screws of the k-plate is clearly marked under the table top. Again... the collar on the drill bit should be set at 10mm (3/8in.) from the tip of the bit.
• Attach the k-plate driving the 6 wood screws Ø4mmx12mm (#8x1/2in.L) into the table top without over-tightening (set your power- tool on LOW TORQUE if using a power tool). Screw size can be increased all the way up to Ø6 mm (Ø1/4in.).


That’s it...
Enjoy your new table top!!!
We do provide K-Plates with 1 key hole, for Ø 1 3/4 in. columns, pre-assembled to the table top.

Table top anchorage instructions: metallic inserts for M6 screws

We recommend using INSERTS for M6 screws to attach most common leg plates/spiders to our table tops.

• Referencing your existing plate/spider, locate the position of the screws under the new table top. We can assist and take care of this process if provided with a drawing with the inter axis of the holes.
• Use a Ø8mm (5/16in.) drill bit with a collar set to make a 10mm (3/8in.) deep hole that will accommodate the insert.
• Using a 6mm Allen key, drive the inserts into the table top holes made previously without over tightening (set your power tool on LOWER TORQUE if using a power tool).
• Using M6 screws, attach the leg plate/ spider to the table top to finish the assembly...

Enjoy your new table top!!!
